StarTech launches U.2 NVMe SSD to PCIe Drive Adapter Expansion Card
SATA is so out of style. Nowadays, all the cool kids are using much-faster NVMe PCIe-based solid state drives that utilize either U.2 or M.2 connectors; I prefer the latter, but I digress. Of course, to maximize the performance of these ultra-fast drives, you will not only need the appropriate connectors, but PCIe 3.0 too. If you don't have the correct connector, all is not lost. Thanks to PCIe adapter cards, you might able to add compatibility to your system without the need of a new motherboard.

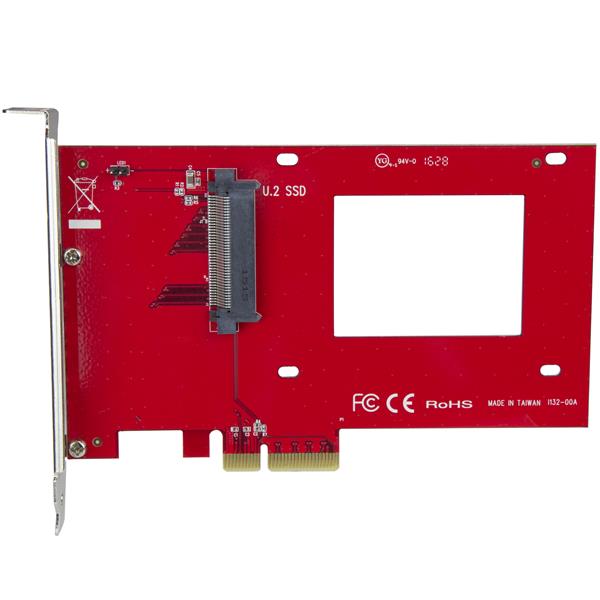

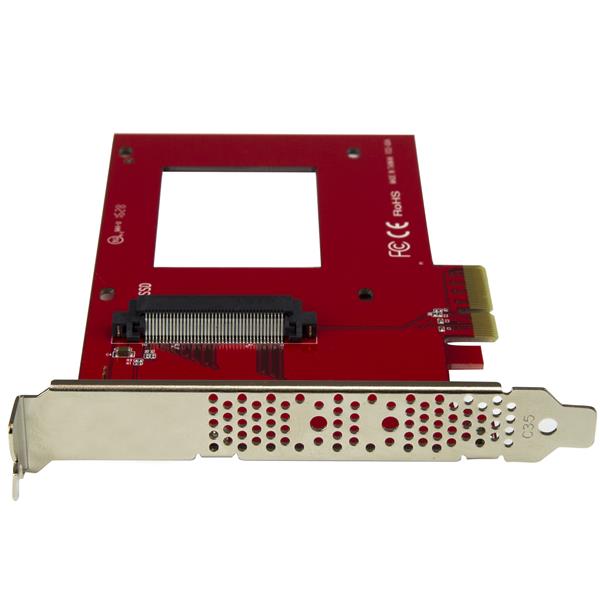

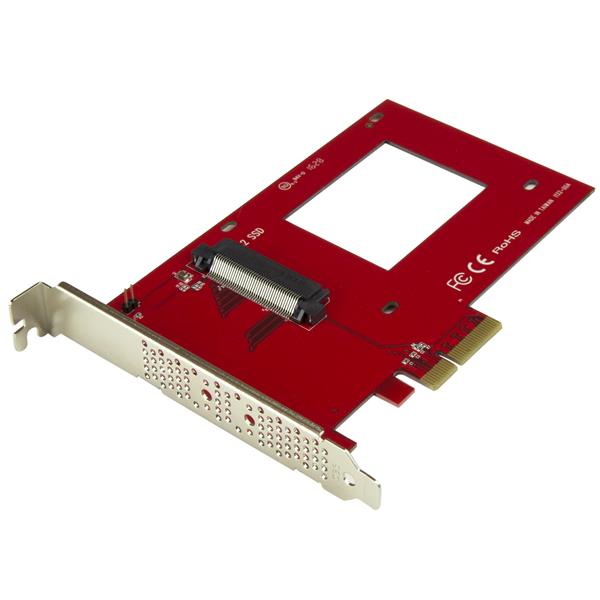

While M.2 adapter cards are very commonplace, U.2 variants are not. Today, StarTech is back with another very useful product -- the U.2 to PCIe Drive Adapter Expansion Card. If you don't have a U.2 connector port, but do have a PCIe 3.0 x4 or higher slot, this card will allow you to connect a compatible drive at top speed. It will work with PCIe 1.0 and 2.0 too, albeit at much slower speeds. You can mount the 2.5-inch U.2 drive (15mm, 12.5mm, 9.5mm, 7mm, and 5mm height) directly on the card, meaning there are no unsightly cables.
"The drive adapter is ideal for those who are interested in taking advantage of the increased speed and low latency of an U.2 (SFF-8639) NVMe SSD, but do not have a U.2 NVMe storage slot available in their computers or servers. This drive adapter lets users add NVMe performance to any computer or server by converting a U.2 NVMe SSD for use with a PCIe 3.0 x4 host connection," says StarTech.
Scott Burton, Product Manager, StarTech explains, "This drive adapter is a cost-effective solution for enhancing the performance of a server or workstation computer with a U.2 NVMe SSD. This adapter will be useful for users who want to take advantage of the increased speed and low latency of U.2 NVMe SSDs, but lack an available U.2 (SFF-8639) NVMe storage slot in systems."
StarTech shares the following features and benefits of the card.
- Supports one (1) 2.5-inch U.2 NVMe SSD; U.2 (SFF-8639) drive interface
- PCIe 3.0 x 4 host interface; compatible with PCIe 3.0 motherboards
- Backwards compatible with PCIe 2.0/1.0
- Installs into an available PCIe slot on a desktop PC or server chassis
- Includes all necessary installation hardware; easy to use and install and does not require any extra software or drivers
- OS independent
The beautiful red U.2 expansion card can be had immediately from StarTech directly for a reasonable $51. Not only should this cost less than a new motherboard (and potentially a new CPU and RAM), but it saves you the hassle and wasted time in swapping out components. If you like your current motherboard and just want to add a U.2 drive to your build, this is certainly worth the money.
Does your motherboard have a U.2 connector? If not, will you buy a solution like this? Please tell me in the comments below.
